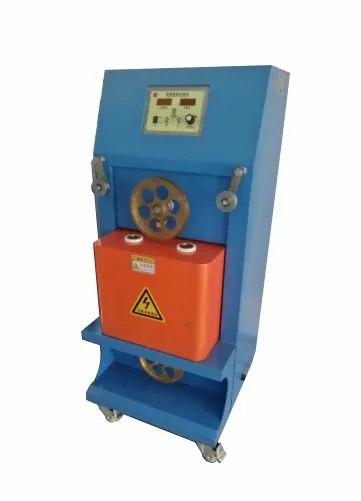

Wire Conductor Pre Heater

Product Description

Mode-WCP10KV

Features

The wire Conductor Pre heater is used to heat copper wire of different sizes on extrusion lines. The pre heating of various wires into this machinery ensures removal of moisture from conductor and avoids breakage and shrinkage of wire coatings.

Specifications

Heating Power	10KVA
Power Supply	AC 50HZ 220V/380V
Inlet wre	0.5-3.0mm
Inlet wire	0.5-3.0mm
Line Speed	500m/min
Heating Temperature	0-180°C
Pulley wheel diameter	280mm
Output	AC 200-350V
Working Frequency	50Hz
Ambient temperature	-10~45°C
