PAPER INSERTING MACHINE

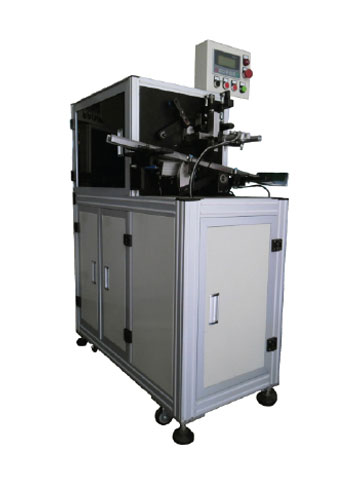

Auto Loader TM-300G Paper Inserting Machine

Paper Inserting Machine

Description

Model: TM 360

Features

  • This equipment adopts PLC control system. Stable performance, easy debugging simple function.
  • The device uses a man-machine touch system, parameter input and modification is very convenient, simple and quick debugging.
  • This device uses the parameter automatic preservation way, the operation is more convenient.
  • This device has a number of sensor protections. High safety performance.
  • The device uses an aluminium alloy structure, equipment, beautiful and beautiful.

Specifications:

Weight 200kg
Dimension 1500mmX600mmX1350 mm
Rotor Diameter 20mm-60mm

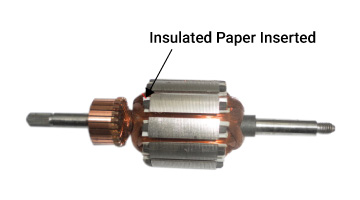

Insulation Paper Thickness 0.18-0.25 mm
Rotor Thickness 12mm-50mm
Rotor Unilateral Maximum Axis Length 120mm
Number of Rotor Slots 3-48
Equipment Work Power AC220V 50 / 60Hz
