Automatic Coaxial RF Cable Stripper

Coaxial RF cable Stripping Machine Wire Cutting Machine

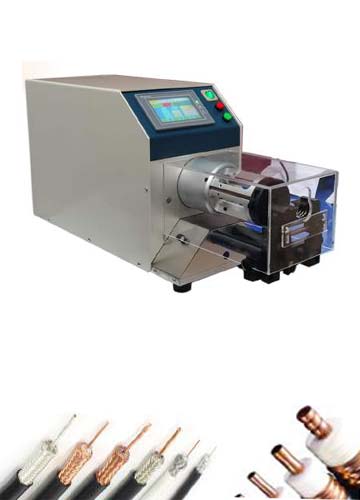

Automatic-Coaxial RF Cable Stripper

Product Description

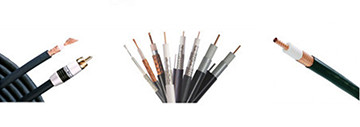

Mainly used for processing of coaxial cable and special single line, using the most advanced rotary tool carrier, improve the accuracy and speed. The specific axis positioning device and rotary cutting tool, up to 9 layers without changing the blade stripping process can correspond to various sizes and wires, and the equipment can be set free by the combined controller, digital display of the cutting wire

Working Parameter

Model

TM-4806

Display method

Colour Touch Screen

Physical Dimensions

580X180X295 (mm)

Power Supply

AC220V50H2

Power

400W

Stripping Length

0.1mm-48

Stripping Diameter

Ф0.5mm-Ф15mm

Minimum Depth Peeling

0.01mm

Weight

22/25 Kg

Maximum Peeling layers

9 Floor

Driveway

A Motor/ball Screw Drive

Centring Pad

2 Tablets

Blade

2 Blades

Working Environment

0-50 of Appropriate Dryness

Clamp Means

Self-Aligning, Program Control

Storage

0-99 kinds of Wire Processing Program stored
