Mini Crusher

Large Cable Crusher

Product Description

  • Crusher standard optional flat blade and flake blade.
  • Standard with all steel blades, if enhance abrasion resistance can choose the blade of SKD11.
  • The standard is equipped with: overload protection, short circuit protection, hopper open shutdown protection.
  • Fan feeding can choose dust recycling and secondary deducting.

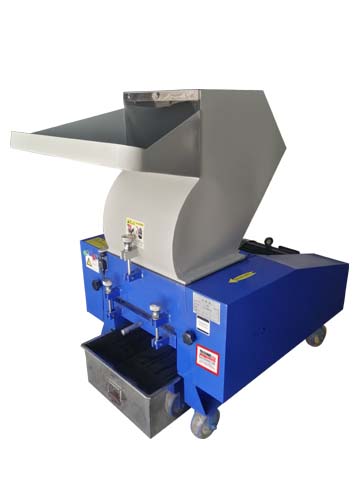

Machine Type Plastic Crusher
Aplicable for ABS PP PVC PVC PE PET
Max Production Capacity 300 kg/h
Production Capacity 200-300 kg/h
Voltage 380V 50Hz
Power 15kw
Blades Material 55 SiCr/D2/SKD-11/Cr12Mo1V
Blade Shape Flat/flake blade
Fixed Blades 4
Rotary 18x6
Dimension 1155x1370x1680 mm
Rotation Speed 580
Weight 980kg
Infeed Opening 310x600
Crushing Rotary Φ330x600
Screen size Φ12
