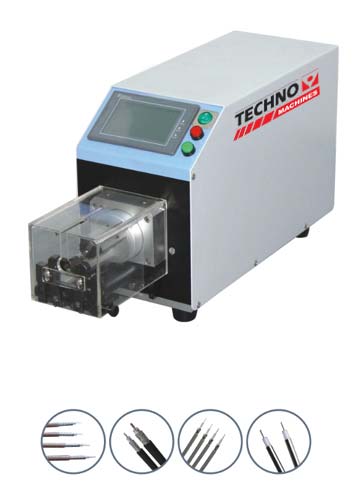

Automatic Coaxial RF Cable Stripper

Automatic Coaxial RF Cable Stripping Machine

Automatic Coaxial RF Cable Stripping Machine

Product Description

Mainly used for processing of coaxial cable and special single line, using the most advanced rotary tool carrier, improve the accuracy and speed. The specific axis positioning device and rotary cutting tool, up to 9 layers without changing the blade stripping process can correspond to various sizes and wires, and the equipment can be set free by the combined controller, digital display of the cutting wire

Working Parameter

ModelTM-6806

Wire Diameter

0.81-6.99mm

Cutting Depth

0.01mm

Efficiency

700-1200 pcs/Hrs.

Max. Stripping Length

48mm

Max. Stripping Layer

9 Layers

Dimensions

600x185x280 mm

Weight

24kg

Power Supply

AC220V 50/60Hz

Power Rating

400W
