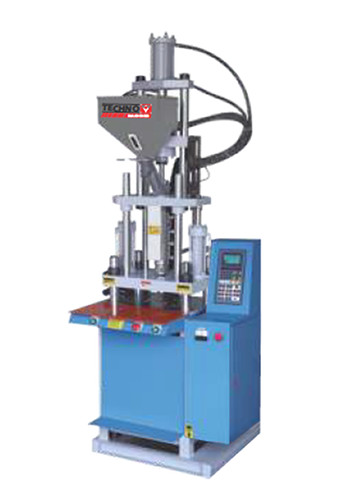

Model: TM- 25-Ton Vertical injection Insert Molding machine
| Model | TM-25 ton
|
|
| Screw Diameter | mm | 26-30 |
| Injection Pressure | kgf/cm2 | 1677-1260 |
| Injection Capacity | cm3 | 55-74 |
| Injection Weight | gr | 63-85 |
| oz | 2. 2-3. 0 | |
| Injection Rate | cc/s | 42-57 |
| Screw Speed | RPM | 0-150 |
| Screw Stroke | mm | 120 |
| Nozzle Stroke | mm | 150 |
| Nozzle Contact Force | tf | 2.4 |
| Clamping System | -- | Hydraulic |
| Clamping Force | ft | 25 |
| Clamping Strike | mm | 215 |
| Max Mould Space | mm | 335 |
| Min Mould Height | mm | 145 |
| Overall Size Of Platens(hxv) | mm | 540x290 |
| Space Between Columns(hxv) | mm | 400x150 |
| Hydraulic Ejector Force | ft | 0.7 |
| Ejector Stroke | mm | 28 |
