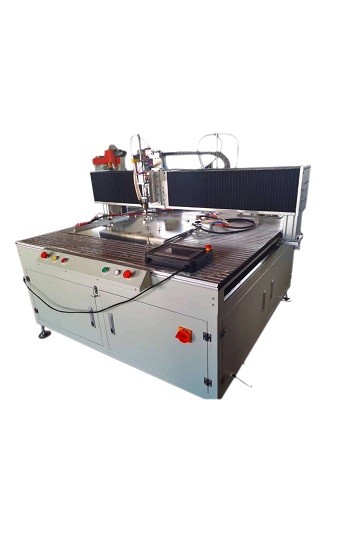

Fully Automatic Stud Welding Machine

fully Automatic Stud Welding Machine

Fully Automatic Stud Welding Machine

Main Configuration

  • Stud Weldling Machine: Automatic Special stud welding machine
  • Automatic Welding Gun: Single gun design, automatic special welding gun with nail free protection function.
  • Nailing mode: Equipped with automatic feeder, automatic nailing, automatic positioning and automatic welding.
  • Control System: PLC
  • Servo Motor: Research and Control
  • Pneumatic element: Cylinder
  • Linear Guide:Silver Loading
  • Ball Screw: TBI

Product Description

Model: TM-5080


Model TM-5080
Product Type Special Machine for Sheet Metal Industry
Specification of Welding Stud Standard energy storage stud (with flange and convex point)
Welding Material Galvanized Plate, Stainless steel plate, Iron Plate etc.
Rated Power 3kv
Working Power Supply 220V/50Hz
Control Power supply DC 24V
X Axis Working Range 800 mm
Working range of Y axis 500 mm
Z axis working range 100 mm
Positioning range 0.2 mm
X and Z axis speed 500 mm/s
