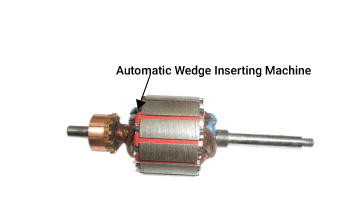

Wedge Inserting Machine

Wedge Inserting Machine Wedge Inserting Machine

Wedge Inserting Machine

Description

Model : TM-360-1

Features

  • This equipment adopts PLC control system. Stable performance, easy debugging simple function.
  • The device uses a man-machine touch system, parameter input and modification is very convenient, simple and quick debugging.
  • This device uses the parameter automatic preservation way, the operation is more convenient.
  • This device has a number of sensor protections. High safety performance.
  • The device uses an aluminium alloy structure, equipment

Specifications and indicators:

Equipment Weight 220kg.
Dimensions 1500mmX600mmX1350mm
Rotor Diameter 20mm-60mm
Insulation Paper Thickness: 0.5-0.8 mm
Rotor Thickness: 12mm-50mm
Rotor Unilateral Maximum Axis Length: 120mm
Number of Rotor Slots 3-48.
Equipment Work Power AC220V 50 / 60Hz.
