C Type Pillar Molding Machine

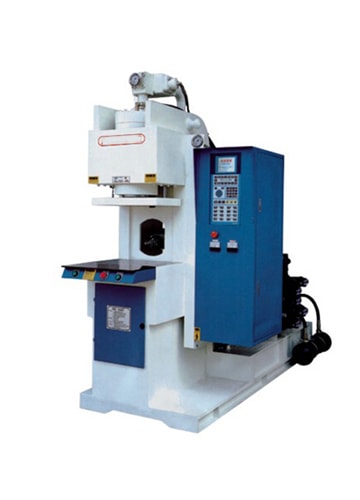

c-type Without Pillar Molding Machine.jpg

C Type Without Pillar Molding Machine

Product Description

Model -TM-55V


Injection Unit

Screw Diameter mm 32
Injection Pressure Kgf/cm2 1807
Injection Capacity cm2 104
Injection Weight(P.S) gram 94
oz 3.3
Injection Rate cc/s 63
Screw Speed r.p.m 0-180
Screw Stroke mm 130
Nozzle Stroke mm 150
Nozzle Contact Force tf 3.5

Clamping Unit

Clamping System --Hydraulic
Clamping Force tf 55
Clamping Stroke mm 200
Max Mold Space mm 375
Min Mold Height mm 175
Overall Size Of Platens(HXV) mm 480*280
Hydraulic Injector Force tf 1.7
Injector Stroke mm 40
Inject Height mm 140±25
Distance From Mold Center To Nozzle mm 75


Slide Journey mm
Size of Slip Form mm
Number of Molds pcs
Number of MoldsPcs2
