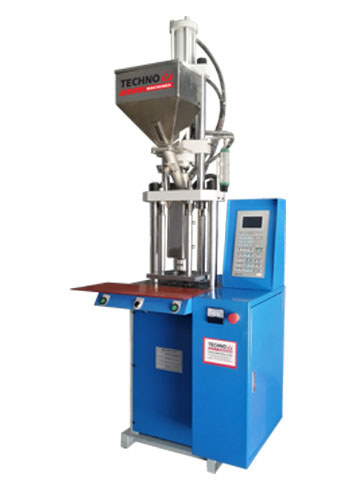

Model -TM 15 Ton
| Model | TM-15 Ton | |
| Screw Diameter | mm | 28 |
| Injection Pressure | kgf/cm2 | 1625-1164 |
| Injection Capacity | cm3 | 34-47 |
| Injection Weight | gr | 39-55 |
| Injection Rate | cc/s | 28-39 |
| Screw Speed | RPM | 0-150 |
| Screw Stroke | mm | 90 |
| Nozzle Stroke | mm | 120 |
| Nozzle Contact Force | tf | 2.4 |
| Clamping System | – | Hydraulic |
| Clamping Stroke | mm | 200 |
| Clamping Force | ft | 15 |
| Max Mould Space | mm | 240 |
| Min Mould Height | mm | 40 |
| Overall Size Of Platens (hxv) | mm | 460x270 |
| Total Load | Kw | 4 |
