LASER MOULD/DIE WELDING MACHINE

Fiber Las

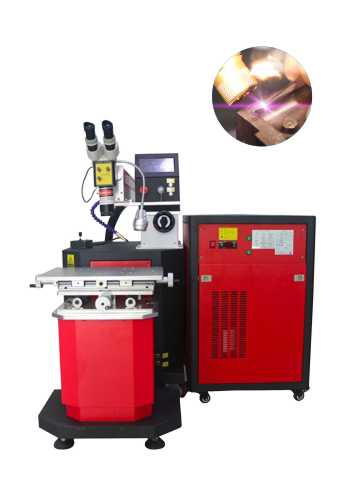

LASER MOULD WELDING MACHINE

Application

Used for Die Welding

TECHNICAL PARAMETERS

Model No. TM-200W
Maximum laser power 200W
Laser Power 200W
Laser wavelength 1064nm
Concentrating cavity Reflector Imported ceramic concentrating cavity
Laser Frequency 1-20Hz
Pulse width 0.1-10Ms
Spot Adjustment range 0.3-2mm
Aiming and positioning Microscope (optional camera system)
Chiller cooling power 1.5P
Rated Power 8KW
Electricity Demand 380V±5V 50Hz/40A /220V±5V 50Hz/60A
Three-dimensional load-bearing table travel 125×100×300mm
Workbench load-bearing 200kg≤
Dimensions/ Net Weight Host:1000×550×1150mm ------- 103kg
1.5P chiller:550×550×850mm ------- 80kg
3P chiller:800×640×1200mm -------- 127kg
Three-dimensional load-bearing workbench:550×400×700mm ------- 57kg
