STATOR PAPER INSERTING MACHINES

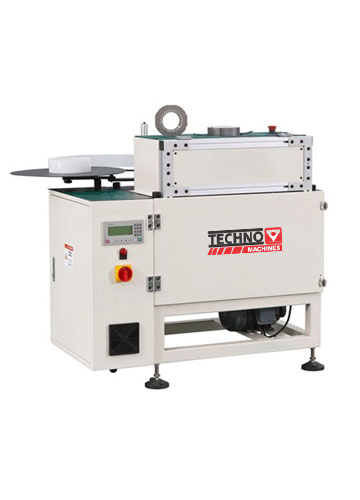

Stator Paper Inserting Machines

Stator Paper Inserting Machines

Features

It’s an automatic machine for insert the paper of small-medium 3 phase motor gasoline engine generator, it can feed paper, folder and press forming automatically, low noise, fast speed, perfect forming, changing groove just need reset the settings, it can insert paper automatically for every other groove and change groove. Also, it’s easy to change the mold.

Technical Specification

Model TM1-90/135
Stack Height 20-90mm
Stator Inner Diameter 20-90mm
Stator Outer Diameter 135mm
Height of Edge Folded 2-4mm/4-7mm
Insulation Paper’s Thickness 0.188-0.35mm
Efficiency =0.5s/s
Power Supply 380v/50/60Hz 2kw
Weight 200Kg
Dimension (L)1200x(w)650x(H)1100mm
