Scrap Copper Wire Shredder Machine

Scrap Copper Wire Shredder Machine Machine

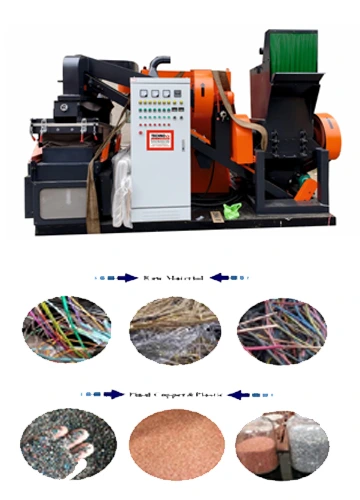

Scrap Copper Wire Shredder Machine


Product Description

Waste Copper wire shredder Machine (also named waste electric wire and cable recycling equipment) is a kind of machinery used to crush waste copper wire and separate copper and plastic. The copper is one of the environment-frendly type equipment, and this machine is easy to operate, it just needs 1-2 workers to operate, greatly saving your labor cost.

  1. Integrated compact machine design, has a smaller occupied area than other machines and machine is simple and easy to operate.
  2. It Adopts PLC control, and simple operation, one worker can operate whole machine.
  3. It Adopts air separator separating and vibrating separating for copper and plastic separator.
  4. Equipped with an advanced dust collector system for collecting dust when machine working.

Technical Parameters

Model TM-600
Scope of Application Φ1-Φ25mm
Number of Knife 10
Number of fixed Blade 4
Output 350-500Kg/h
Power 55kw
Motor Voltage 3 Phase 380V
Weight 4300Kg
Over all Dimension (L*B*H) 4.7x2x2.5m
