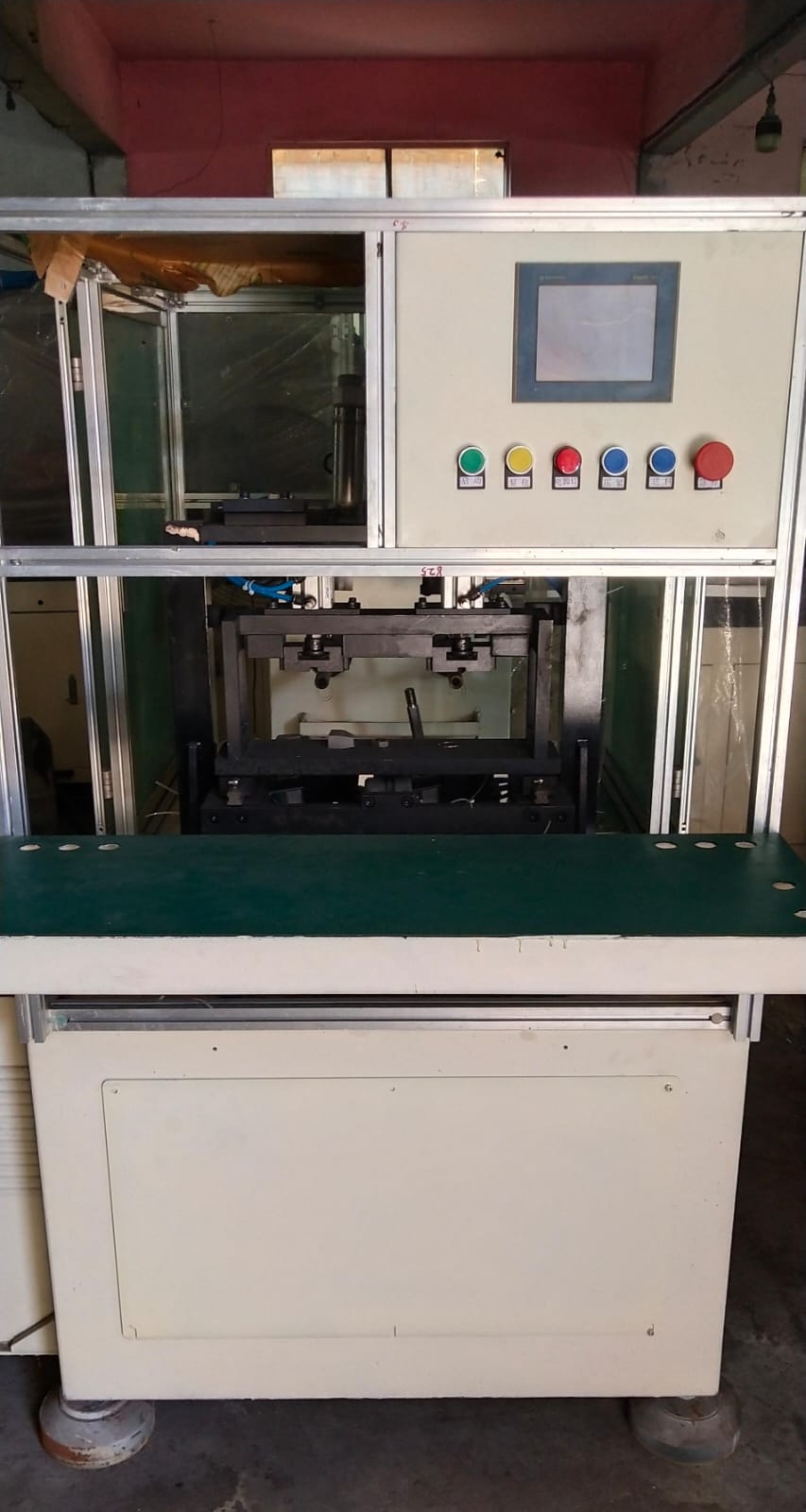

| Model | TM-SW20 |
| Frequency Converter | Delta |
| Touch Screen | Vellon |
| Cylinder SMC | Airtac |
| Motor Power | AEEF 112M 5HP (3.7kw) |
| Power Supply | Three Phase 380V |
| Stroke Range | 135-185mm (Adjustable) |
| Lubrication Form | Continuous Lubrication from Oil Machine |
| Compressed Air Pressure | 0.5-1 Mpa |
| Speed Range | 0-6000 R/M Adjustable |
| Applicable Wire Dia | Φ0.25-Φ1.0, Φ0.8-Φ1.4 (Divided into ordinary and heavy duty) |
| Applicable Pole Number | 2 Poles |
| Applicable Stack Thickness | 20-55 (Special design for stator beyond the range) |
| Inner Diameter of Stator | Φ30-Φ56 mm |
| Outer Diameter of Stator | Φ80-Φ95 mm |
| Machine Dimension | 160x1120x1600 mm |
| Machine Weight | 1.5 Ton |
